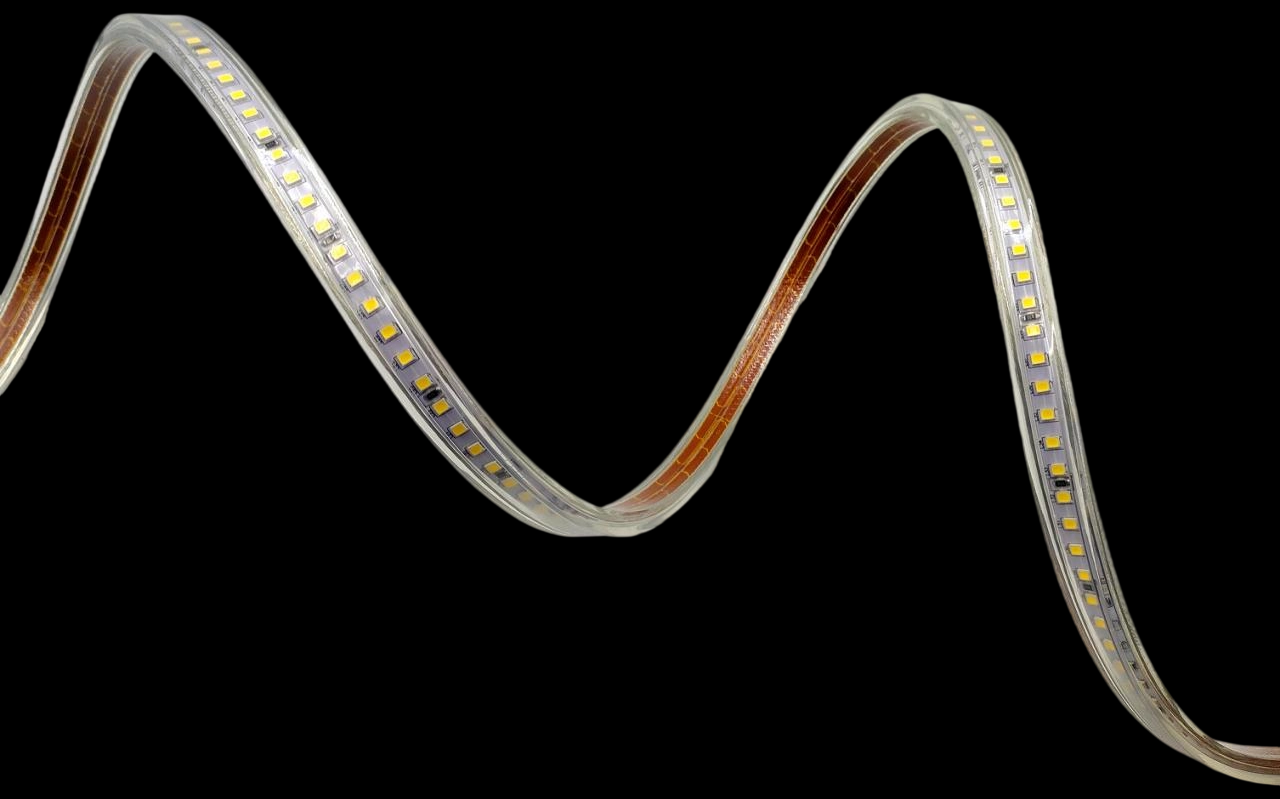

PART No.: ESL144V230H
VOLTAGE: AC230V
WATTAGE: 8W/M
LEDs/M: 144
CRI: 80
IP GRADE: 65 (HOLLOW EXTRUSION)
CUT UNIT: 100CM/CUT
CCT: 3000K/4000K /6000K
LUMINOUS FLUX: 3000K 4000K 6000K
740LM/M 750LM/M 765LM/M
MAX LENGTH: 50M (Single-end power feeded)
PACKING LENGTH: 25/50M per Reel
PART No.: ESL144V230H
VOLTAGE: AC230V
WATTAGE: 8W/M
LEDs/M: 144
CRI: 80
IP GRADE: 65 (HOLLOW EXTRUSION)
CUT UNIT: 100CM/CUT
CCT: 3000K/4000K /6000K
LUMINOUS FLUX: 3000K 4000K 6000K
740LM/M 750LM/M 765LM/M
MAX LENGTH: 50M (Single-end power feeded)
PACKING LENGTH: 25/50M per Reel
FEATURES
1. The product can obtain CE/ROHS certification.
2. The casing is made by injection molding and extrusion, ensuring high product consistency.
3. Anti-UV, flame retardant level V1-V0.
4. Protection level IP65, suitable for indoor and outdoor use.
5. High luminous efficiency and brightness, meeting the requirements of European ERP.
6. No need for an external power supply, directly use AC230V voltage.

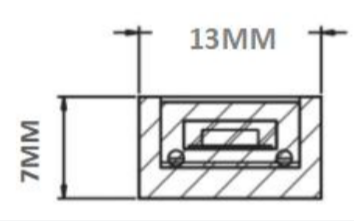

DEMENTIONS

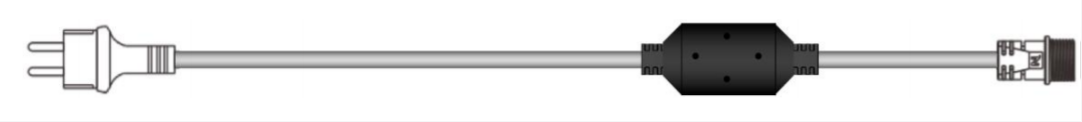

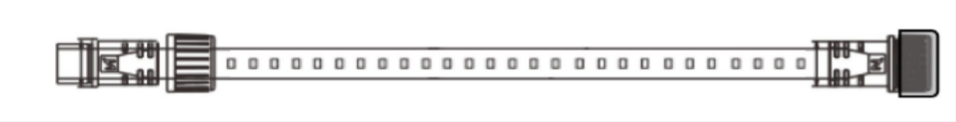

CONNECTORS
