• ENL11D31.12
  • ENL11D31.12

    Power Input:                    24VDC

    Power consumption:       24W/M

    Luminous flux:                 1900lm/M

    Dimension:                       W31/H45/L1000mm

    Light source color:           2500K/2700K/3000K/4000K

    Beam angle:                    20°/30°/25*40°/20*55°

    CRI:                                  >90

    IP:                                     IP40

    Finish:                              Gray /White/ Black

    Intsall Way:                      Surface Mounted


    Product Features

    1.DeepBlack Anti-Glare Optics for visual comfort

    2.Durable, high-density aluminum housing.

    3.Interchangeable Mounting System for easy intallation


    • ¥0.00
      ¥0.00
Product Description

Power Input:                    24VDC

Power consumption:       24W/M

Luminous flux:                 1900lm/M

Dimension:                       W31/H45/L1000mm

Light source color:           2500K/2700K/3000K/4000K

Beam angle:                    20°/30°/25*40°/20*55°

CRI:                                  >90

IP:                                     IP40

Finish:                              Gray /White/ Black

Intsall Way:                      Surface Mounted


Product Features

1.DeepBlack Anti-Glare Optics for visual comfort

2.Durable, high-density aluminum housing.

3.Interchangeable Mounting System for easy intallation

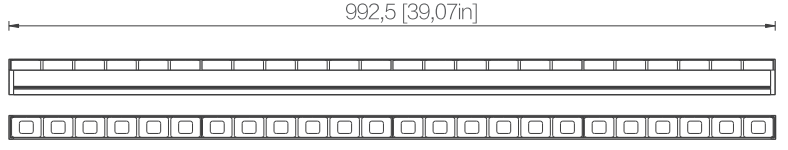

PRODUCT SIZE(Unit:MM)




1M 24LEDS (Unit:MM)





     0.5M 12LEDS (Unit:MM)





0.25M 6LEDS (Unit:MM)

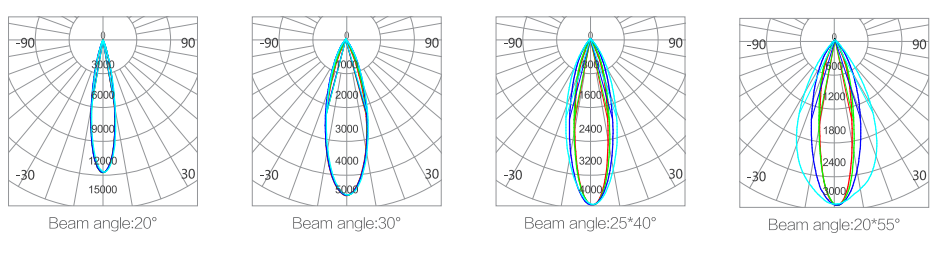

LIGHT DISTRIBUTION

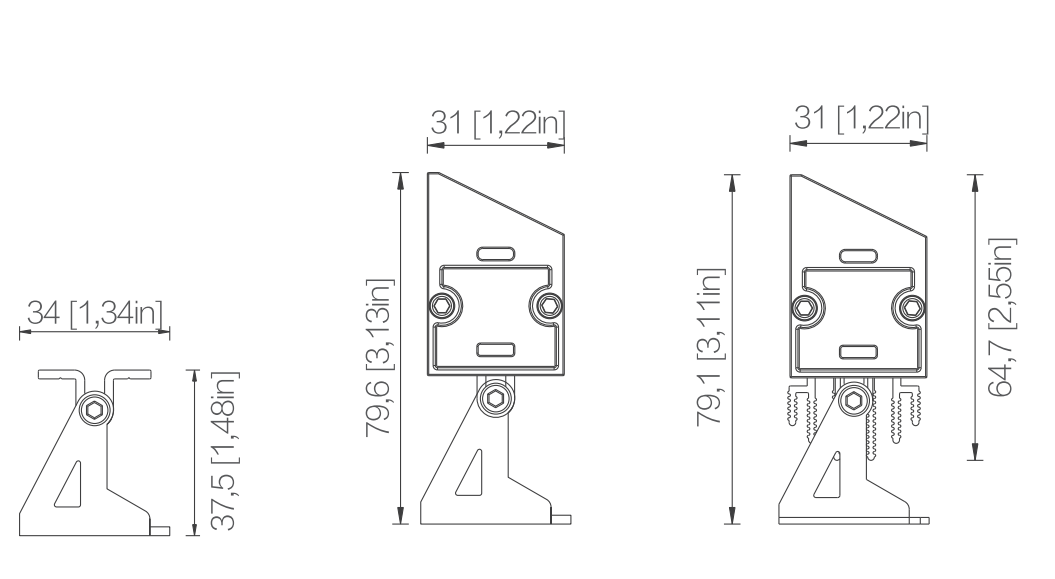

INSTALLATION

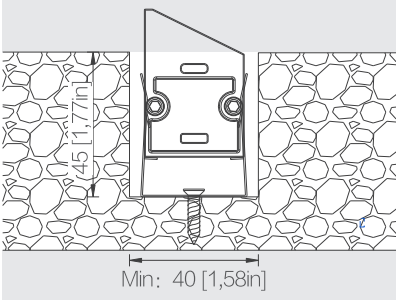

A.STAINLESS STEEL BUCKLE (Unit:MM)

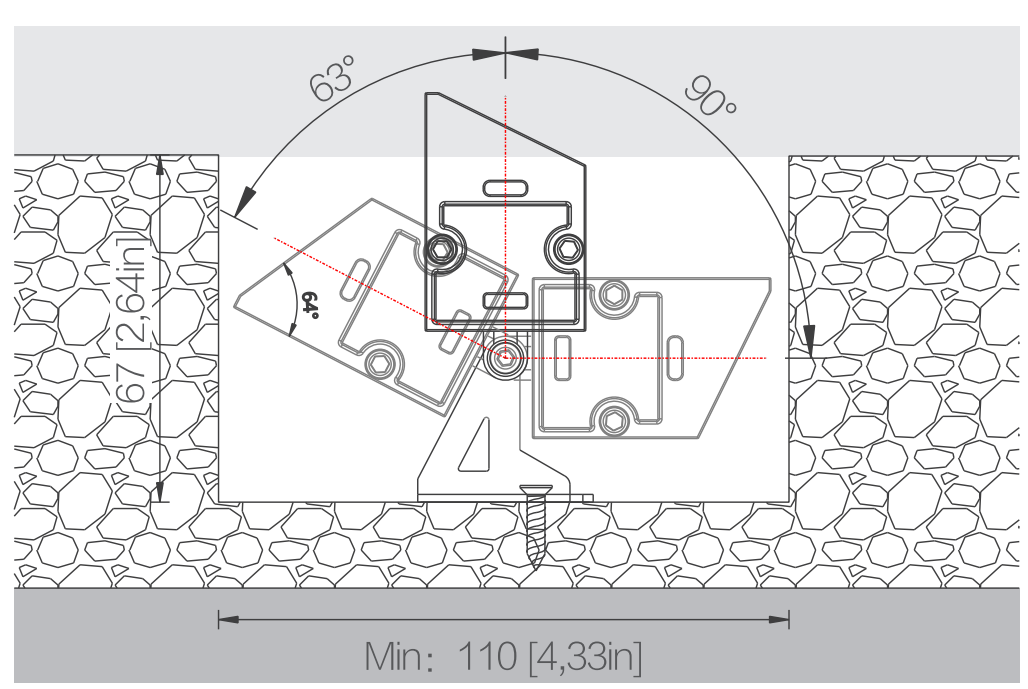

B.ROTARY ALUMINUM BRACKET (Unit:MM)
