Power Input: 24VDC
Power consumption: 24W/M
Luminous flux: 1900lm/M
Dimension: W25/H15/L1000mm
Light source color: 2700K/3000K/4000K
Beam angle: 20°/30°/25*40°/20*55°
CRI: >90
IP: IP40
Finish: Gray /White/ Black
Intsall Way: Surface Mounted
Product Features
1.DeepBlack Anti-Glare Optics for visual comfort
2.Durable, high-density aluminum housing.
3.Interchangeable Mounting System for easy intallation
Power Input: 24VDC
Power consumption: 24W/M
Luminous flux: 1900lm/M
Dimension: W25/H15/L1000mm
Light source color: 2700K/3000K/4000K
Beam angle: 20°/30°/25*40°/20*55°
CRI: >90
IP: IP40
Finish: Gray /White/ Black
Intsall Way: Surface Mounted
Product Features
1.DeepBlack Anti-Glare Optics for visual comfort
2.Durable, high-density aluminum housing.
3.Interchangeable Mounting System for easy intallation

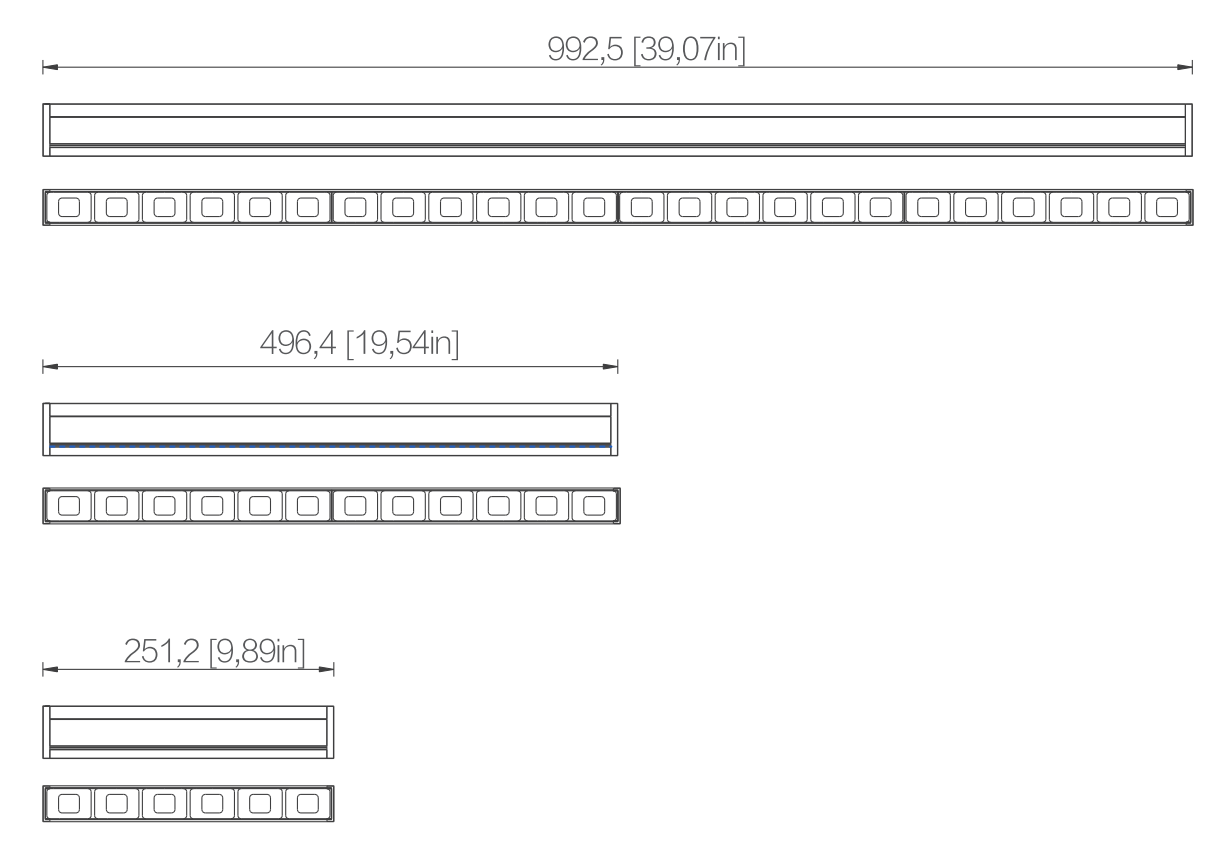

PRODUCT SIZE(Unit:MM)
1M 24LEDS

LIGHT DISTRIBUTION

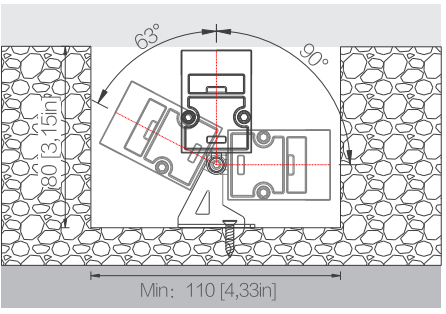

INSTALLATION

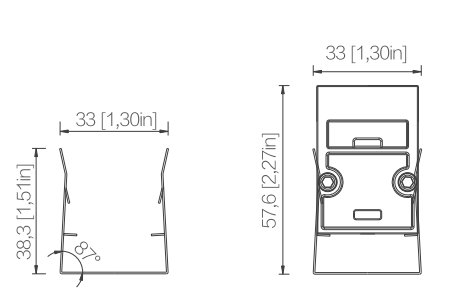

A. STAINLESS STEEL BUCKLE (Unit:MM)

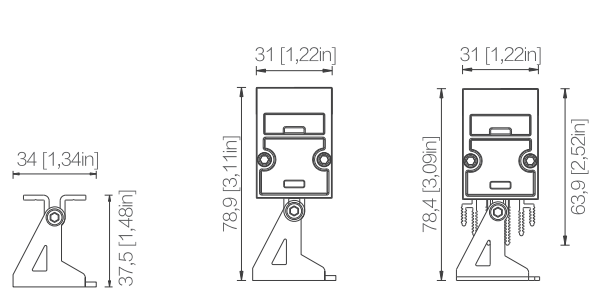

B. ROTARY ALUMINUM BRACKET(Unit:MM)
